DIY - Adding Accent lighting to Translucent Panels

I’m planing to install RGB pixel led lights on body frame inside the translucent pannels.

Control from mobile app ( Android) or web portal (local ip) over wifi.

Powered by 5v power bank.

Any ideas?

4 Likes

I have a suggestion. Check out some bicycle LED lights incase you want to play with only one colour - red. Its much easily attachable, and takes just one AA battery. No need for a power bank. Has two functions - steady light and continuous blinking

Pros -

  • Cuts down all complications of power bank
  • Will be a good and cheaper fix, incase things don’t go your way.
  • illuminating the frame red would definitely look beautiful, in my opinion.

Cons which I can think off :

  • Switching it on/off will be slightly tedious and lame.
  • chances of it falling off, if not secured well.
  • batteries need to be changed if used very often

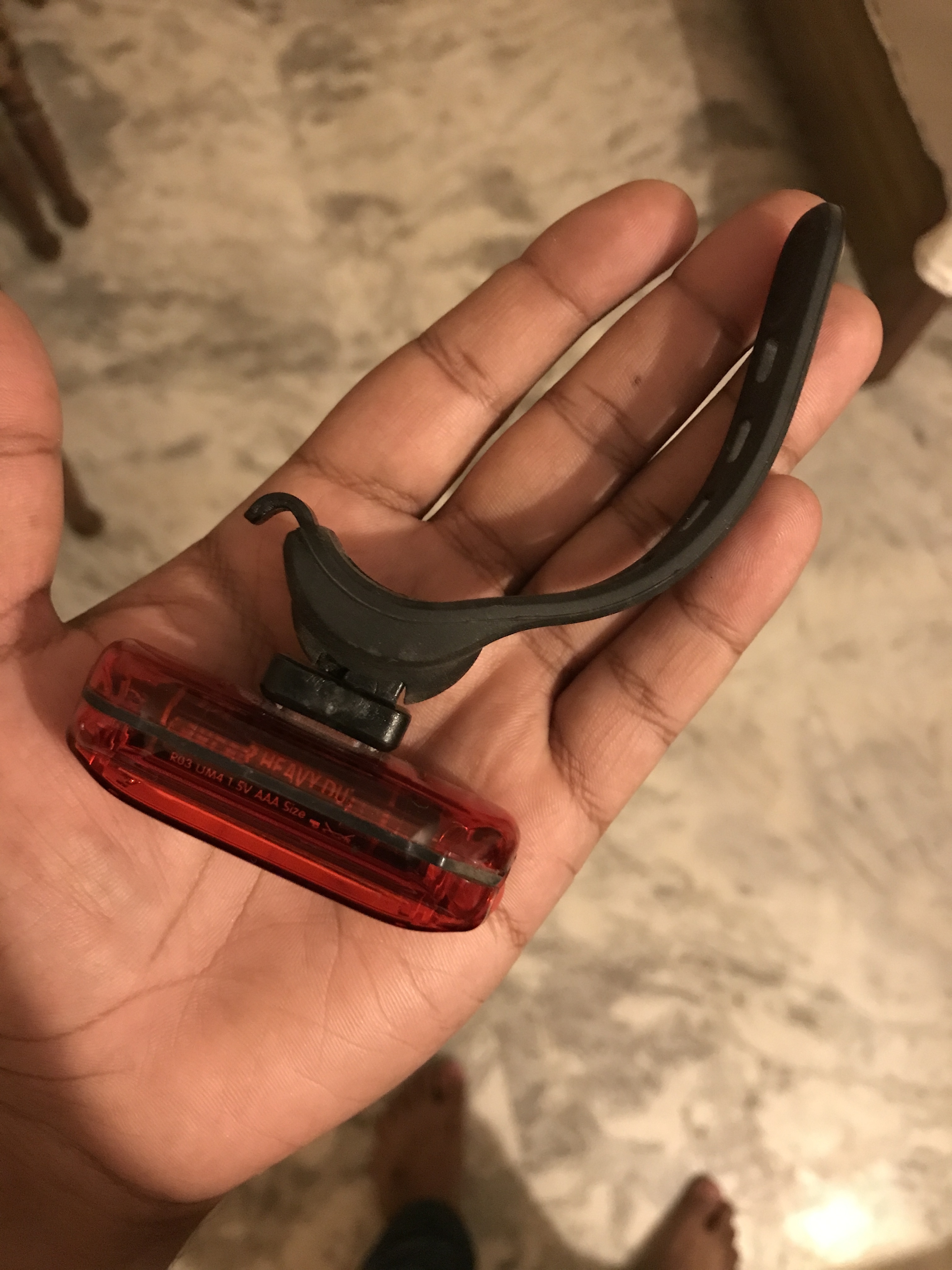

Attaching a few images of my bicycle light :

Very easy to do I’d say. Take the wire out from the side cubby hole rubber cover by making a simple hole in it. The powerbank can also be kept in the same cubby hole. As it’s inside the boot, it’s safe as well.

1 Like

I will share a graphic video of what I’m going to do

If ather won’t void warranty, we can do this

View in full screen

Design can be changed and We can place LEDs as we like.

This is a computer generated mockup. The real version will be more awesome :metal:.

9 Likes

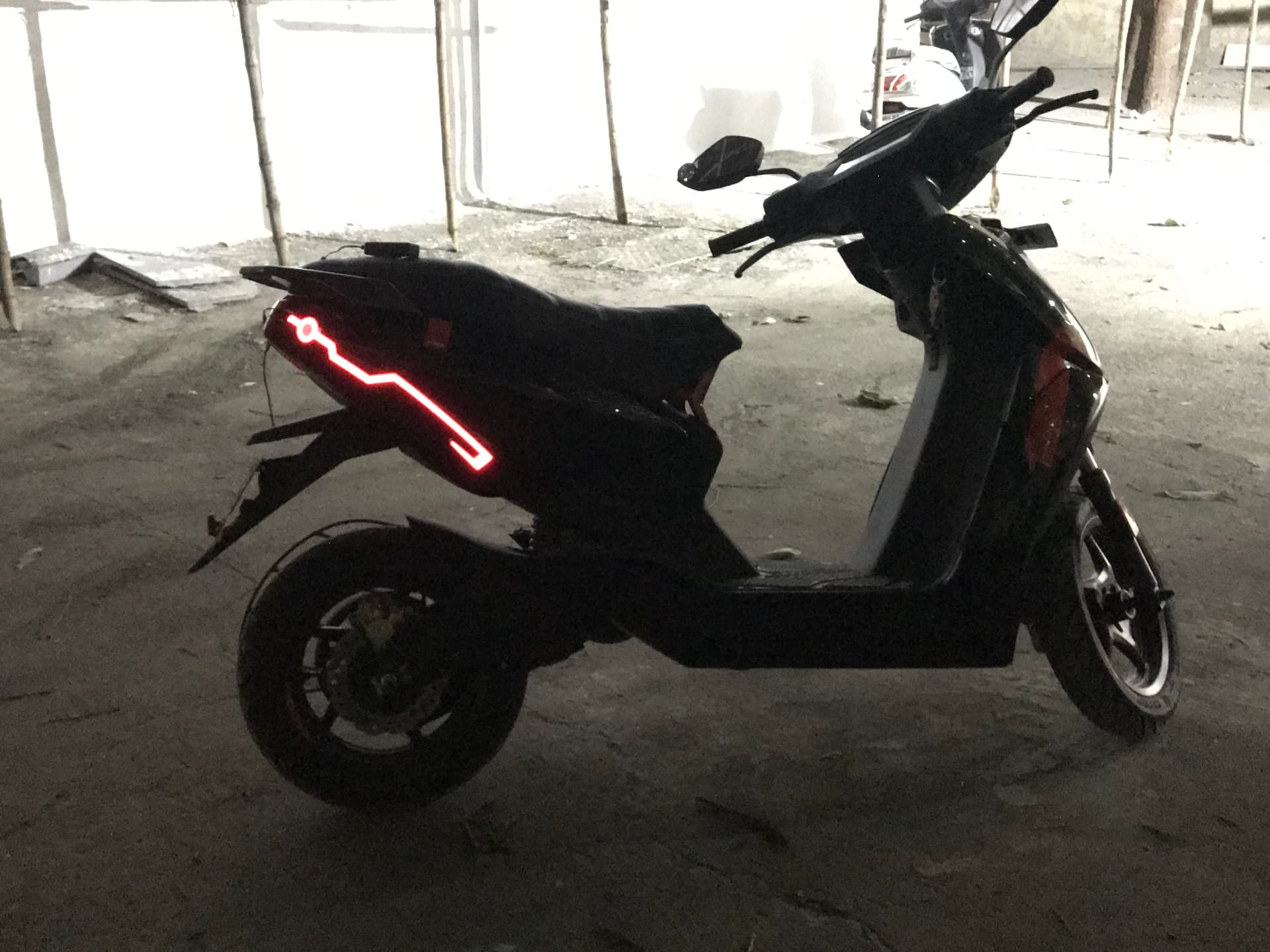

Ah ok! Looks great! I am going to try something like this - mclaren 720s inspired. Steady red light in the engine compartment


We can use an accelerometer to sence the speed and animate designs accordingly

1 Like

I am trying to do the same! Trying to design a PCB and install it when they install the panel. Probably trying to figure out how can I pull the positive and negative wires to have a small solar above the number plate. If not battery can be placed there itself. Working with a module which works on 3.3v and Can be integrated with the App. Let’s see how this side project goes!

4 Likes

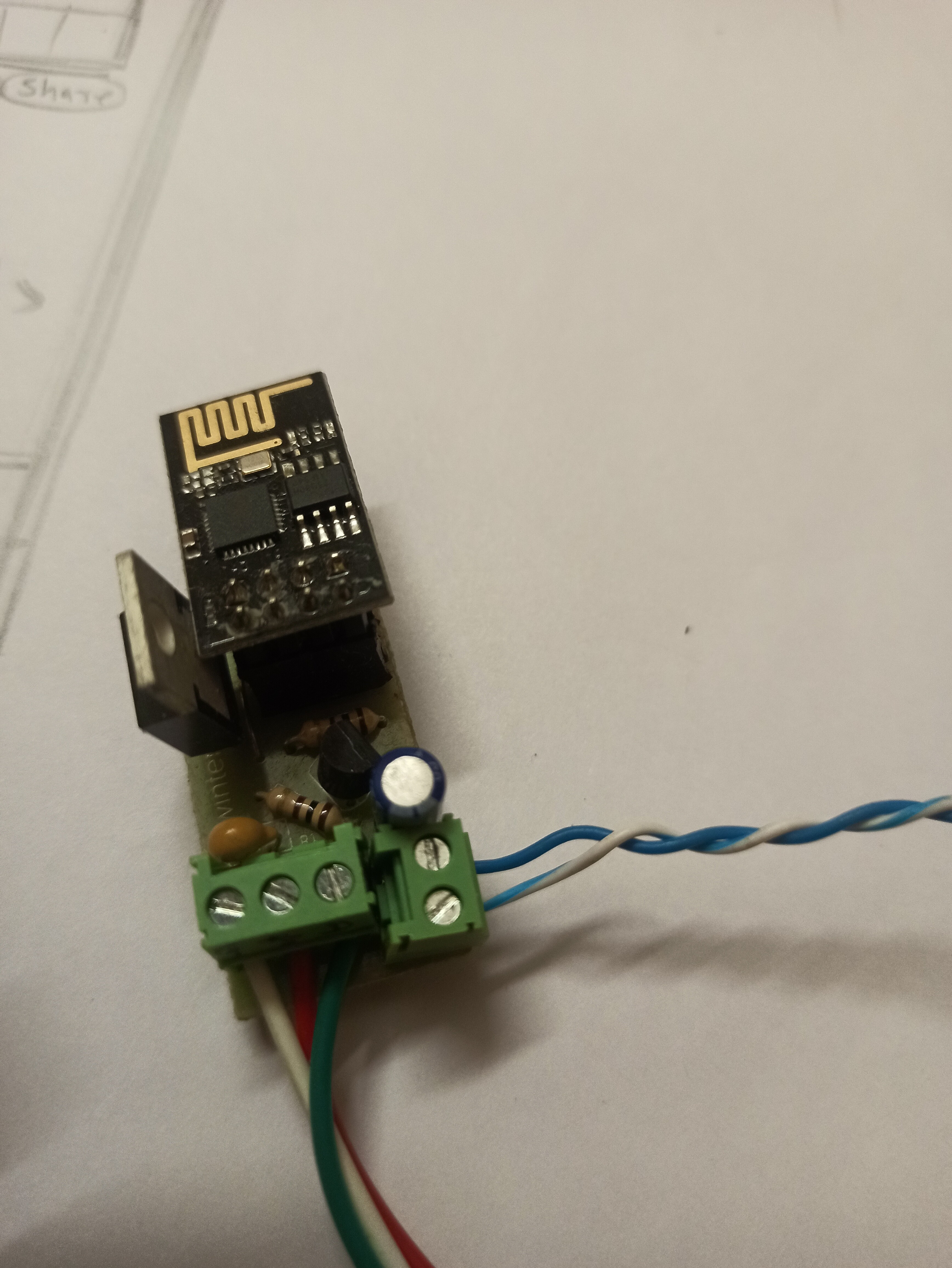

We can use an esp01 module to do this.

1 Like

Yup! Esp!. The lights can be controlled via bluetooth can can have our control! I am just thinking if solar module which can power up. I am not interested in only battery powered. As the time goes we will be lazy to not charge the battery!

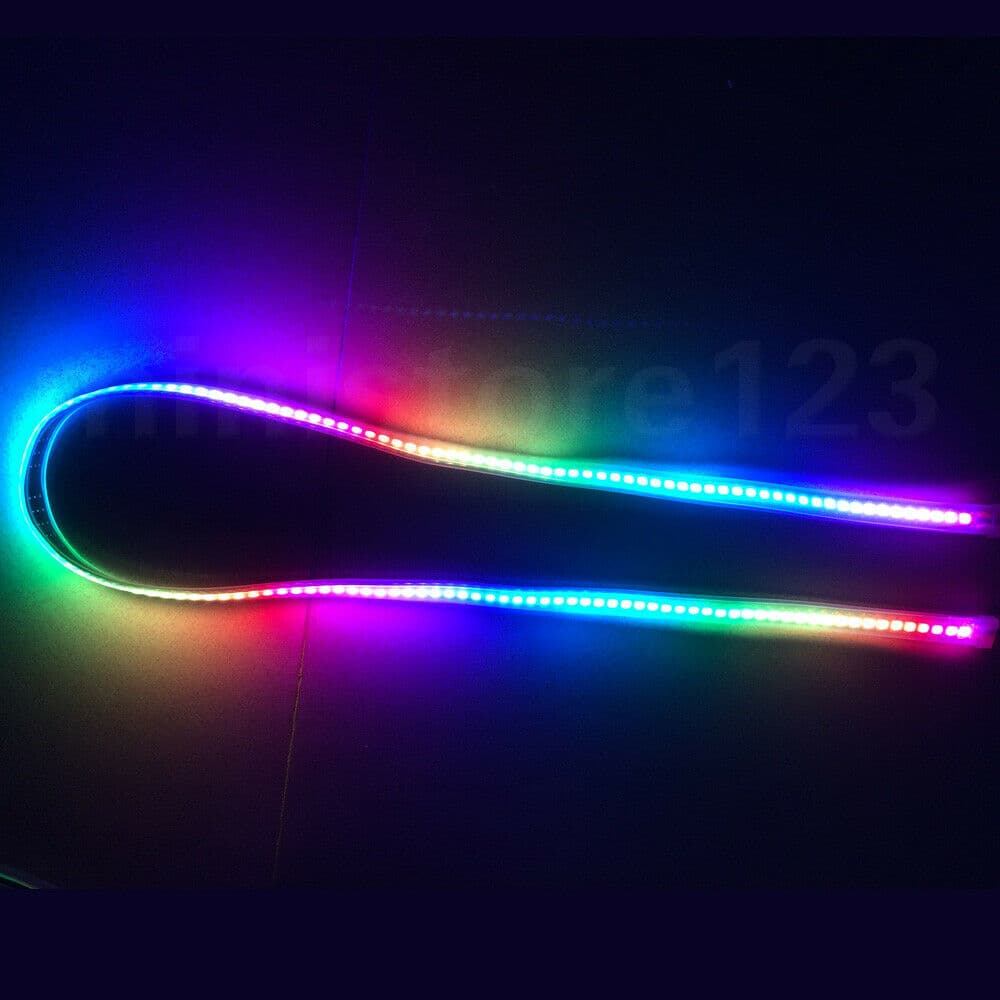

You just need 5V ARGB led strips and a controller of it, everything can run on a 5v power bank

If you are really into electronics, then and do not mind the warranty, then you can take a 9v line which is available from taillights connect a step down to 5v, and add 2 sets of controllers to Arduino controller with WI-FI module, you will need to write coding and can write the exact codes to which you have shown in your video.

Also if you add them you can add the left and right flashing code when turn signals are engaged with an orange colour, and red colour when you apply the brakes, it will be so cool, and RGB effects when the scooter is running

5 Likes

A small controller like this could do the job. https://www.winterlights.in

2 Likes

Here is the Link for basic A-RGB light control via Arduino Board

4 Likes
